PostgreSQL

Where does Postgres Store Data?

												 SHOW data_directory;


This retrieves the path where data directory is installed for that postgresql. In the 'base' folder under data directory all the databases will be stored/persisted. Each database will be stored as a folder and an integer is given as the folder name.

How to know what database is mapped to the folder name?

The folder name will be a number not the actual database name.

												SELECT oid, datname from pg_database;


What are the contents of the database folder?

For example, postgres database folder. Here postgres database folder will be mapped to a integer number. When you go into that folder, you would see a lot of files. To know more details about that folder, Run the query

												SELECT * FROM pg_class;


This will show all the details of all the databases created under the installed Postgresql

What is a HEAP or HEAP File?

HEAP/HEAP File contains all the information for a specific relation/table. It holds all the data for a particular table. Ex: if we have created a table called EMPLOYEES, a HEAP File gets created to store all the Employees information. This file will be stored under '"data_directory"/base/oid_folder_of_the_database/oid_of_the_table' Note: This is not HEAP Data structure

What is a Tuple or Item?

It is nothing but a particular row of a table. [Individual row from the table].

What is Block or Page?

The Heap file is divided into many different 'Blocks' or 'Pages'. Each Page/Block stores multiple number of rows Each Block/Page is 8 KB in size.

How BLOCK is managed/stored ?

Each Block would have 5 sections
1. Page Header Data (Information about the block) -24 bytes long
2. Item Id Data (Information about the Tuples) - 4 bytes per item.
3. Free Space: The unallocated space. New item identifiers are allocated from the start of this area, new items from the end.
4. Items (Data of the Tuples)
5. Special Space (Index access method specific data. Different methods store different data. Empty in ordinary files)
6. To know how PostgreSQL stores data at the binary level check this Link

What is a Full Table Scan?

If there is no Index created, before applying the filters all the data from the Heap File will be loaded RAM. The search takes place one by one. As a result it would impact the Performance. The primary objective is to make sure the data transfer between hard-disk and RAM is minimized. Try ways to limit the data transfer. In general, the Full table scan results into a poor performance. But there are situations where Full Table Scan is desirable.

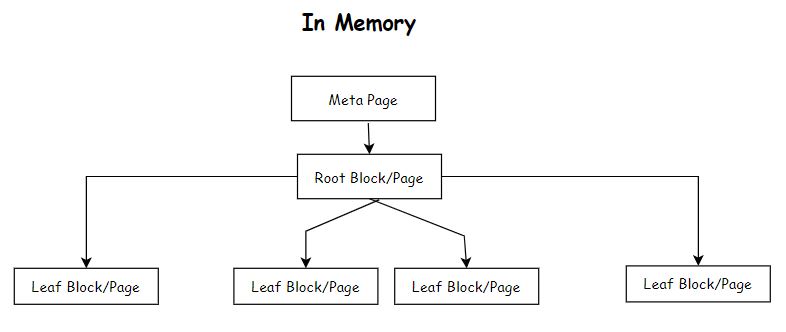

What is an Index?

Index is a data structure that efficiently tells us what block/index a record is stored. When Index is created, a separate mapping file is build to store the address of each value. 1. A file containing column value and it address gets created
2. Based on the Index Type, the elements will be organized/stored in a meaningful way. [Alphabetical for text and values for numbers]
3. For example, B-Tree Index Type, all the values will be sorted organized into a tree by applying B-Tree.
4. All the values will be distributed in the leaf-nodes evenly in order left to right.

How to create/delete an Index?

													CREATE INDEX ON 'table-name' ('column-name')


													CREATE INDEX 'index-name' ON 'table-name' ('column-name')


To drop an Index
													 DROP INDEX 'index-name'


What are the benefits of Indexes?

In general,We will get the tremendous benefits by creating Indexes.
Improved query performance: Indexes allow the database to quickly locate and retrieve specific rows of data, which can greatly improve the performance of queries that search for specific data.
Reduced disk I/O: Without indexes, the database would need to scan the entire table to find the desired data, which can be slow and resource-intensive. Indexes allow the database to quickly locate the desired data, reducing the amount of disk I/O required.
Improved concurrency: Indexes can improve the concurrency of a database by reducing the amount of time that a table lock is held.
Enforced uniqueness: Some indexes, such as unique indexes, can be used to enforce uniqueness constraints on the data.
Improved join performance: Indexes can also improve the performance of joins, by reducing the amount of data that needs to be scanned when joining tables.
Improved performance for aggregate functions: Certain types of indexes, such as B-tree, can be used to improve the performance of aggregate functions such as SUM, COUNT, AVG, etc.
Improved performance for sorting: Indexes can be used to sort the data, which can improve the performance of ORDER BY clauses.

What are the downsides of creating Indexes?

Increased disk space usage: Indexes require additional disk space to store the index data. This can be a significant issue for large tables or for systems with limited disk space.
Increased write performance: time a row is inserted, updated, or deleted in a table, the corresponding index must also be updated. This can slow down write performance, especially for large tables or high write loads.
Increased maintenance overhead: Indexes need to be maintained, which can add additional overhead. This includes tasks such as updating the index when data is added or removed, and periodically rebuilding the index to improve performance.
Query performance trade-offs: Indexes can improve query performance for certain types of queries, but they may not be beneficial for all queries. Additionally, using too many indexes can actually slow down certain types of queries.
Index bloat: Over time, indexes can become fragmented, which can cause them to take up more disk space and slow down performance. Regularly monitoring and vacuuming the indexes can help prevent this issue.
un-used Indexes: In certain scenarios, Postgres doesn't use indexes while executing queries. We need to be aware and create them only when they are needed.

What is Index Fragmentation?

When do we need to rebuild Indexes periodically in Postgres?

How to get the table size and index size?


                              SELECT pg_size_pretty(pg_relation_size('table_name'))
                              SELECT pg_size_pretty(pg_relation_size('index_name'))



What are the different types of Indexes?

B-Tree (Balanced Tree Index): A B-Tree index is a type of index that is commonly used in relational databases, including PostgreSQL. B-Tree stands for balanced tree, which refers to the way the index is structured. It is a general purpose index. 99% of the time you want this. In a B-Tree index, the data is organized into a hierarchical structure of nodes and keys. Each node in the tree contains a collection of keys, which are used to navigate to the next level of the tree. The keys in each node are sorted in ascending order, which allows for efficient search, insertion, and deletion operations. When a query is executed that requires data from a B-Tree indexed table, the database uses the keys in the B-Tree index to quickly locate the desired data. This allows the database to avoid scanning the entire table, which can greatly improve the performance of the query. B-Tree indexes are particularly useful for large datasets, and are well suited for queries that involve range searches, such as WHERE id BETWEEN 100 AND 200. They also support sorting and aggregate functions such as SUM, COUNT, AVG etc. Additionally, B-Tree indexes are multi-purpose indexes and can be used for many types of queries, including single-column and multi-column queries, and for enforcing unique constraints on the indexed columns.
2. Hash Index: It used to speed up simple equality checks. A HASH index is a type of index in PostgreSQL that uses a hash function to map the indexed values to a fixed number of buckets. It is useful for exact-match lookups of a single column, particularly when the cardinality of the indexed column is not too high, and the data distribution is random. HASH indexes are created using the CREATE INDEX command with the USING HASH option.

 The syntax would be:

												  CREATE INDEX index_name ON table_name (column_name) USING HASH;


HASH indexes are useful for:
Exact-match lookups: HASH indexes are particularly efficient for exact-match lookups on a single column. They can quickly locate the desired data by hashing the indexed value and looking up the corresponding bucket.
High-cardinality data: HASH indexes are useful for high-cardinality data, which means data with a large number of distinct values, as it can handle a large number of unique values.
Random data distribution: HASH indexes are most efficient when the data distribution is random.
Equality operator: HASH indexes are most efficient when used with the equality operator (=)
However, HASH indexes have some drawbacks, such as they are not useful for range queries and they can be slower than other types of indexes when the data distribution is not random, or when the table has a high number of duplicates values. Additionally, they can not be used for sorting or aggregate functions such as SUM, COUNT, AVG etc. It's worth noting that PostgreSQL only creates an index when it determines that the index will be useful and beneficial for the performance of the queries, and it's always recommended to monitor the performance of the queries and indexes to ensure that they are working as expected.

2.1 What is the cardinality of the indexed column?

The cardinality of an indexed column refers to the number of distinct values in that column. The cardinality of a column can have an impact on the performance of a HASH index. When the cardinality of the indexed column is low, it means that there are relatively few distinct values in the column. In this case, a HASH index may not be as efficient as other types of indexes, such as a B-Tree index

                         CREATE INDEX index_name ON table_name USING GIST(column_name);


                             CREATE INDEX index_name ON table_name USING SPGIST(column_name);


                             CREATE INDEX index_name ON table_name USING GIN(column_name);


                             CREATE INDEX index_name ON table_name USING BRIN (column_name);


what is the difference between GiST Index and SP-GiST Index?

When does POSTGRES automatically creates Indexes?

Primary keys: When a primary key constraint is created on a table, PostgreSQL automatically creates a unique index on the primary key column(s). Foreign keys: When a foreign key constraint is created on a table, PostgreSQL automatically creates an index on the foreign key column(s). Unique constraints: When a unique constraint is created on a table, PostgreSQL automatically creates a unique index on the constrained column(s). Full-text search: When a text search index is created using the full-text search functionality in PostgreSQL, the database will automatically create an index on the specified text search column(s) Expressions index: When an expression index is created, PostgreSQL creates an index on the result of the specified expression. GIN (Generalized Inverted Index): When a GIN index is created, PostgreSQL automatically creates an index on the specified column(s) It's worth noting that PostgreSQL only creates an index when it determines that the index will be useful and beneficial for the performance of the queries. And it's always recommended to monitor the performance of the queries and indexes to ensure that they are working as expected.

How to see automatically generated indexes?

In general, these indexes do not appear in the constraints section in PG-Admin To pull all the indexes we need to pull it form pg_class table SELECT relname, relkind FROM pg_class WHERE relkind = 'i' The pg_class table lists all the objects that exists in the database. In the above 'i' refers to Index.

When do we need to create Full-text search index?

When do we need to create Expression Index?

When do we need to create GIN Index?

What happens when Index is created?

A file gets created on the disk for the created index with a random number When you create an index in PostgreSQL, a new data structure is created that stores a copy of one or more columns of data from a table, along with a pointer to the original data. This new data structure is organized in a way that allows for faster searching, sorting, and filtering of the data based on the indexed columns. The structure of the file internally has the following 1. 8KB Meta Page 2. 8KB Leaf Block/Page 3. 8KB Leaf Block/Page 4. 8KB Root Block/Page 5. 8KB Leaf Block/Page etc. In Memory Meta Page --> Root Block/Page --> one or more Leaf Block/Page

What is pageinspect extension?

The extension provides additional functionality in the postgresql The pageinspect extension would help to provide information or inpsect about pages/blocks or Heap File.
Syntax:


                          CREATE EXTENSION pageinspect;
                          SELECT * FROM bt_metap('index_name')



                        SELECT * FROM bt_page_items('index_name')



                          SELECT * FROM bt_page_items('index-name', page_number)
                          Example: SELECT * FROM bt_page_items('user_username_idex', 1)



Another Question?

what are the various steps involved while executing an SQL in Postgres?

In PostgreSQL, there are primarily 4 steps 1. Parser It validates the syntax and creates a query tree from the query that is being written by the user. It will be handling the query-tree to Rewrite 2. Rewriter The query tree will be modified if needed so that query can be executed efficiently. Also if views are used they will be decomposed into underlying table references. 3. Planner The goal of the planner is to look at the query tree and figure out what data needs to be fetched and comes up with different plans and strategies that is best and fastest. For example, it will try to check if there are any indexes and see if there is any efficiency in using them vs pulling the data directly without using indexes etc. 4. Execute Run the Query

What are the below
[abc] , [^abc] , [a-z] , [A-Z] , [a-zA-Z] , [0-9]

• [abc] → a,b or C
• [^abc] → any character except a, b, C
• [a-z] → a to z
• [A-Z] → A to Z
• [a-zA-Z] → a to z , A to Z
• [0-9] → 0 to 9

What are Quantifiers in Regular Expressions

• [ ]? → Occurs 0 or 1 times
• [ ]+ → Occurs 1 or more times
• [ ]* → Occurs 0 or more times
• [ ]{n} → Occurs n times
• [ ]{m,n} → Occurs at least m times but less than n times.
• [ ]{n,} → Occurs n or more times

What are Meta Characters in Regular Expressions

• \d → [0-9]
• \D → [^0-9]
• \w → [a-zA-Z_0-9]
• \W → [^w]
• \s → white space characters "[\f\n\r\t\v]"
• \S → non white space characters
• "\p{Ll}" → [a-z]
• "\p{Lu}" → [A-Z]

What are Special Characters in Regular Expressions

"." (dot) which matches any single character except a newline.
"*" which matches zero or more occurrences of the preceding character or group. -- IS DEFAULT
"*?" which matches zero or more occurrences of the preceding character or group(non greedy).
"+" which matches one or more occurrences of the preceding character or group. -- IS DEFAULT
"+?" which matches one or more occurrences of the preceding character or group(non greedy).
"?" which matches zero or one occurrence of the preceding character or group.
"^" which matches the start of a string.
"$" which matches the end of a string.
"|" which separates alternatives.
"{" and "}" which are used to specify the number of occurrences of the preceding character or group.
"(" and ")" which are used to group characters or sub-expressions.
"[" and "]" which are used to specify a character class.
"" which is used to escape special characters.
"|" which separates alternatives.
\ is an escape character
In Short
start : ^
end : $
single char : .
zero or one : *
zero or many : *
one or many : +
OR operator : |
AND operator : &

What are Zero Width Assertions in Regular Expressions ?

It is a type of pattern in regular expressions that assert a condition without consuming any characters in the input string. They do not affect the final matched string, but influence the matching process.
Positive Lookahead assertion: (?=)
Example: \w+(?=\d)
This regular expression matches a sequence of word characters followed by a digit. but the digit is not part of the final match.
Input String : "abc123"
Matched String : "abc"
Negative Lookahead assertion: (?!)
Example: \w+(?=!d)
This regular expression matches a sequence of word characters that are NOT followed by a digit.
Input String : "abc123"
Matched String : None

Positive Lookbehind assertion:(?<=)
Example: (?<=\d)px :
This regular expression matches "px" only if it is preceded by a digit. For example the following strings would match: "13px", "7px"
Negative Lookbehind assertion: (?<!)
Example: (?<!\d)px :
This regular expression matches "px" only if it is not preceded by a digit. For example, the following strings would match: "px" , "abcpx"

What are Capturing Groups in Regular Expressions ?

Capture groups in regular expressions allow you to extract specific parts of the matched text. A capture group is defined by enclosing a portion of the pattern in parentheses ( and ). You can then access the captured text using back references. In PostgreSQL, you can use the regexp_matches function to extract capture groups. The function returns an array of text arrays, where each text array represents a capture group. Here's an example of how to use capture groups with the regexp_matches function in PostgreSQL:

                        SELECT regexp_matches('10.20.30.40', '(\d+)\.(\d+)\.(\d+)\.(\d+)');
                        This will return the following output:

                         Output
                         regexp_matches
                         ----------------
                          {{10,20,30,40}}
                         (1 row)





                      WITH data AS (
                          SELECT regexp_matches('10.20.30.40', '(\d+)\.(\d+)\.(\d+)\.(\d+)') as ip_parts
                      )
                      SELECT unnest(ip_parts) as ip_part FROM data;


                      ip_part
                      ---------
                       10
                       20
                       30
                       40
                      (4 rows)


                      WITH data AS (
                        SELECT regexp_matches('10.20.30.40', '(\d+)\.(\d+)\.(\d+)\.(\d+)') as ip_parts
                        )
                        SELECT ip_parts[1] as first_part, ip_parts[2] as second_part, ip_parts[3] as third_part, ip_parts[4] as fourth_part
                        FROM data, unnest(ip_parts) with ordinality;


                        This will return the following output:

                        first_part | second_part | third_part | fourth_part
                        -----------+------------+-----------+-----------
                        10        | 20         | 30        | 40
                        (1 row)




                        WITH sample_data AS (
                          SELECT '01-01-2023'::text AS date_string
                        ), extracted_data AS (
                          SELECT matches as date_values, matches[1] as month ,matches[2] as day ,matches[3] as year
                          FROM (
                            SELECT regexp_matches(date_string, '(\d{2})(?:[-/])(\d{2})(?:[-/])(\d{4})') as matches
                            FROM sample_data
                          ) matches
                        )
                        SELECT *
                        FROM extracted_data;

                        This will return the following output:
                        date_values  |	month |	day |	year
                        ---------------------------------
                        {01,01,2023} |	01    |	01  |	2023






                  WITH sample_data AS (
                      SELECT '+1 (123) 456-7890'::text AS phone_number
                    ), extracted_data AS (
                      SELECT matches, concat(
                        coalesce(matches[1], ''),
                        matches[2],
                        matches[3],
                        matches[4]
                      ) as custom_format_number
                      FROM (
                        SELECT regexp_matches(phone_number, '(?:(\+1)[ -])?\(?(\d{3})\)?[ -]?(\d{3})[ -]?(\d{4})' ,'g') as matches
                        FROM sample_data
                      ) matches
                    )
                    SELECT matches, custom_format_number
                    FROM extracted_data

                    This will return the following output:
                    matches           |	custom_format_number |
                    -------------------------------------------
                    {+1,123,456,7890} |	+11234567890





Deep dive into regexp_matches function

The regexp_matches function in PostgreSQL is used to match a regular expression pattern against a string and return the matched substrings as a set of text values. The function has the following syntax:

                        regexp_matches(string text, pattern text [, flags text])



Here is an explanation of each flag supported by regexp_matches in PostgreSQL:

• g (Global): Specifies that the match should return multiple matches across the entire input string, instead of just the first match.

Example: SELECT regexp_matches('abcabcabc', '[a-z]+', 'g'); will return {abc,abc,abc}.

• i (Case-Insensitive): Makes the match case-insensitive, so it will match upper-case and lower-case letters without differentiation.

Example: SELECT regexp_matches('ABCabc', '[a-z]+', 'i'); will return {ABC,abc}.

• m (Multiline): Specifies that the "^" and "$" symbols in the pattern should match the start and end of lines (not just the start and end of the input string).

Example: SELECT regexp_matches('line1\nline2', '^[a-z]+', 'm'); will return {line1, line2}.

• c (Case-Sensitive): Makes the match case-sensitive, so it will differentiate between upper-case and lower-case letters. This is the default behavior of regexp_matches.

Example: SELECT regexp_matches('ABCabc', '[a-z]+', 'c'); will return {abc}.

• p (Partial newline-sensitive): Makes the "^" and "$" symbols in the pattern match the start and end of the input string, including any partial line at the end of the input string.

Example: SELECT regexp_matches('line1\nline2\n', '^[a-z]+$', 'mp'); will return {line2}.

It's possible to use multiple flags together, by concatenating them. For example, to perform a case-insensitive, global search, you would use the flags gi.

How to Test Regular Expressions in Postgres?

                      select regexp_matches(E'search-string', 'regular-expression'  , 'g' ) as col


                    select regexp_matches(E'search-string', 'regular-expression' ) as col


In the regular expression if we specify '()' is what is going display?

                      select regexp_matches(E'abc@abc.com, bbc@bbc.com', '[a-z]+[@][a-z]+[\.]([a-z]+)'  , 'g') as col


                     SELECT regexp_matches(E'abc@abc.com, bbc@bbc.com', '[a-z]+[@][a-z]+[\.]([a-z]+)'  , 'g') as col ;



What are other ways of executing Regular Expressions in PostGreSQL?

                     SELECT regexp_matches(E'abc@abc.com, bbc@bbc.com', '[a-z]+[@][a-z]+[\.][a-z]+'  , 'g') as col
SELECT column from table where column ~'regular-expression'


                   SELECT substring(column FROM 'regular-expression') from TABLE
